Quick clamping unit ready for mounting, suitable for DIN 6343 steel or Rubber-Flex® collets.
Ortlieb lever-operated collet chucks can also be automated by using pneumatic cylinders. Please ask for our installation documents.
QUADRO®

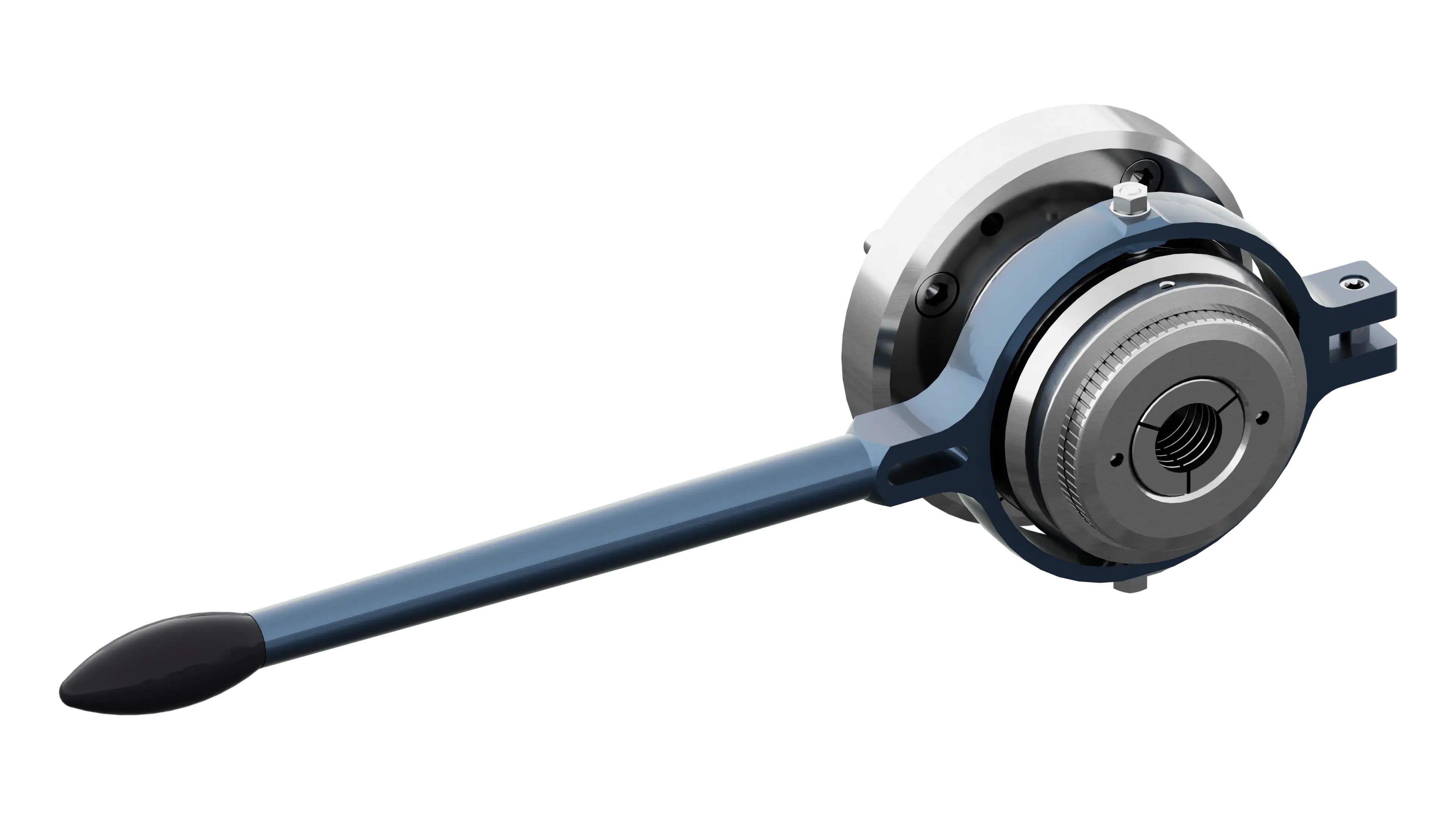

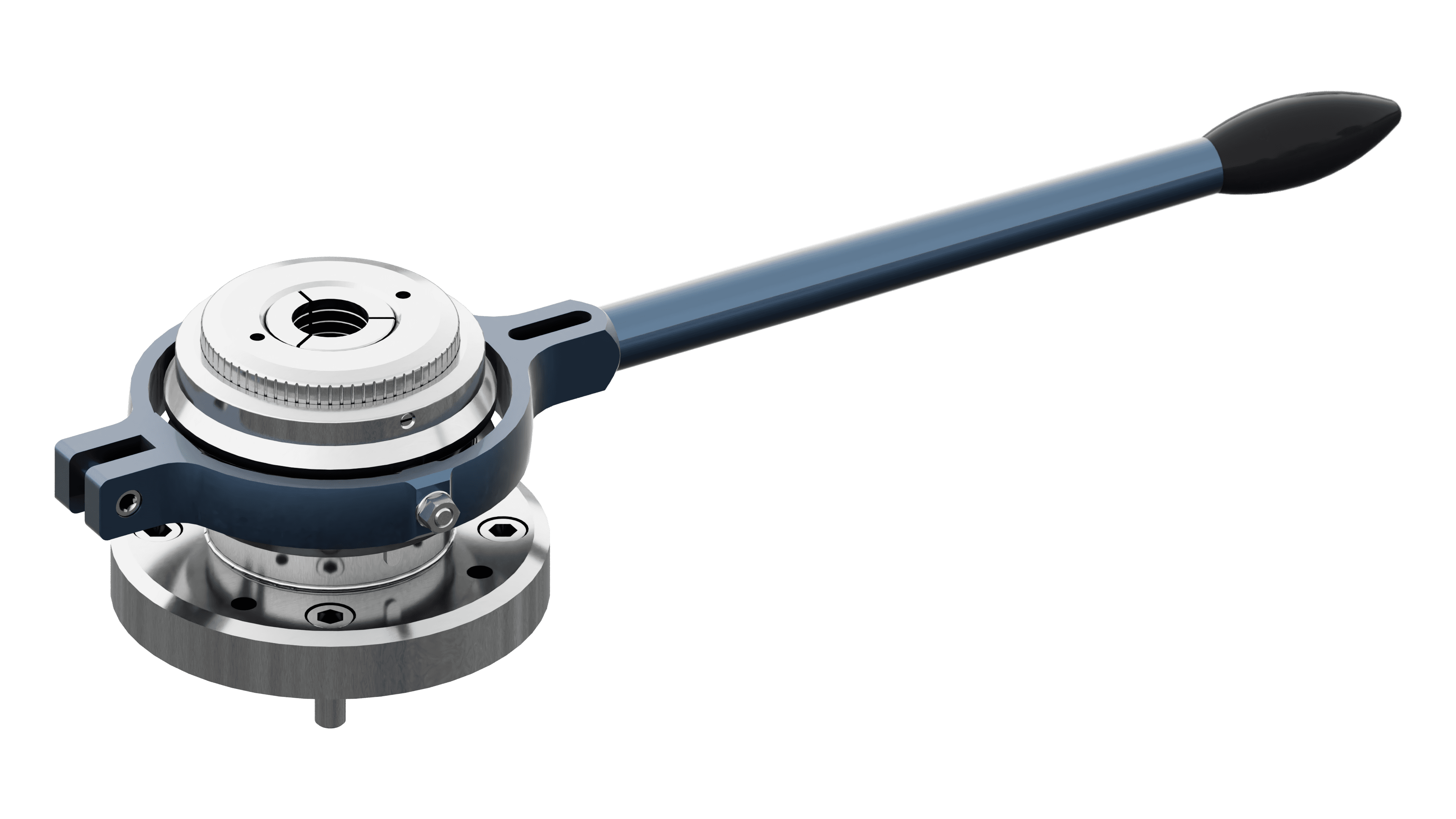

Lever-Operated Collet Chuck SSF
The chuck is closed manually with a lever. Closing force is transmitted self locking to the collet sleeve by means of balls
At the use of Rubber-Flex® RFC collets the chuck compensates diameter tolerances up to 0,7 mm of workpieces without adjusting the cap
Simple design suitable for increased spindle speed
Forkhead, joint bar and bolt are machine specific and therefore not included in scope of delivery
